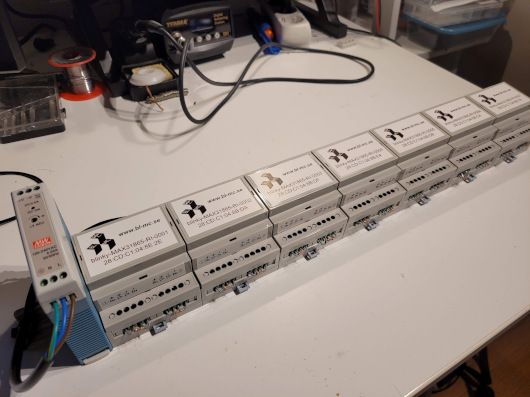

Blinky-Max31865 System

Each module:

• contains two channels with 15 bits of resolution.
• is wireless and requires no communication cables.
• is low power requiring a power source between 3.7 to 5.2V and draws a maximum current of 65mA
• can be operated in pulse mode. The minium length of the current excitation pulse is 100 mS
• packaged in a 4-mod wide DIN enclosure

The system allows the user to enter eighth order calibration curves for each temperature channel. The curves can be either a Taylor series expansion or a Chebyschev polynomial.
