BinaryFlagCube Added to Application Builder

to graphically display digital status

.

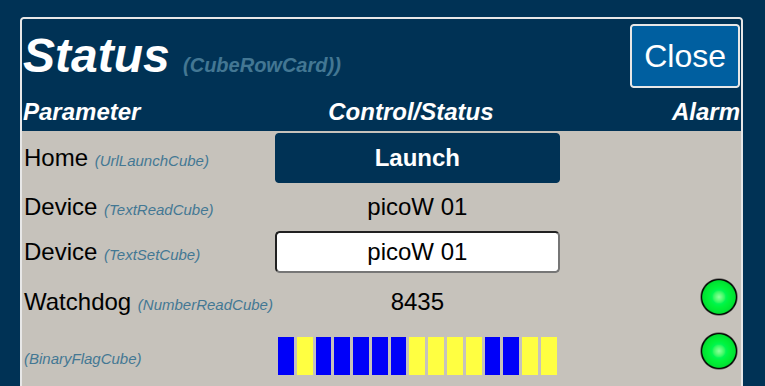

Often, digital status for many devices is stored as a single integer with the individual bits signifting the digital status. This can be difficult to display so we just add the BinaryFlagCube widget to the Blinky-Lite application builder to make it easy to add this functionality to customized user applications. When the cursor is rolled over the bit display, a tool-tip describing the flag is displayed. The display can be set to a subset of the bits in the flag and the direction of the bits can also be changed.

An example JSON object is:

{
  type: 'BinaryFlagCube',
  config:
  {
    trayIndex: 0,
    cubeName: 'watchdog',
    cubeLabel: 'Watchdog',
    startBit: 0,
    stopBit: 14,
    bitLabels: ['b0','b1','b2','b3','b4','b5','b6','b7','b8','b9','b10','b11','b12','b13','b14'],
    offColor: 'blue',
    onColor: 'yellow',
    borderColor: 'green'
  }
}
