Application Builder Upgrade

with 9 card types and 13 cube types

Building event driven controls applications can be quite complicated so Blinky-Lite has an application builder that makes it easy for the user to build his own custom dashboard application without having to do any programming. The user just configures a JSON file. An example file is given in the Blinky-Lite docs. The application builder has a basic library of widgets based on Boostrap 4 cards. This widget library is easily extensible to more widgets.

We just revamped the entire library Application Builder Library adding more cards and widgets.

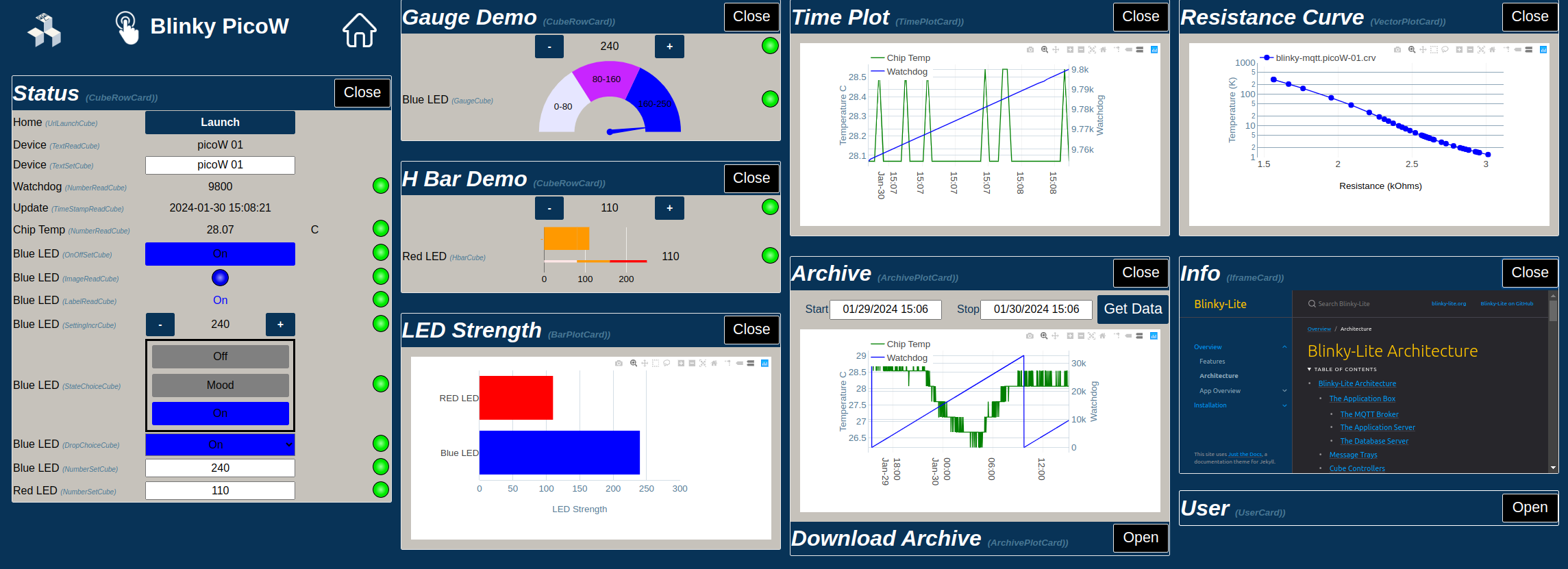

Application Builder Cards

Cards can be arranged in an order and the can be more than one CubeRowCard. There are currently nine different types of cards.

• CubeRowCard
• BarPlotCard

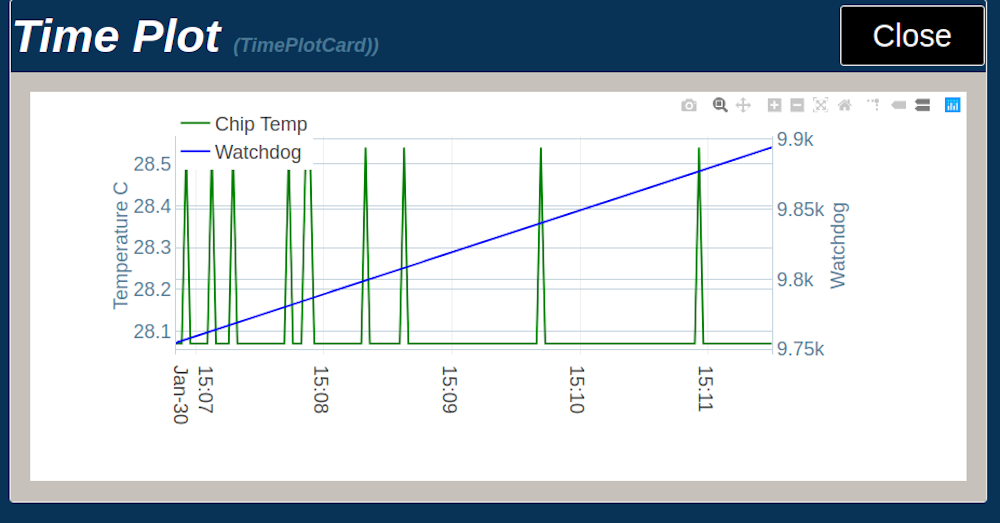

• TimePlotCard

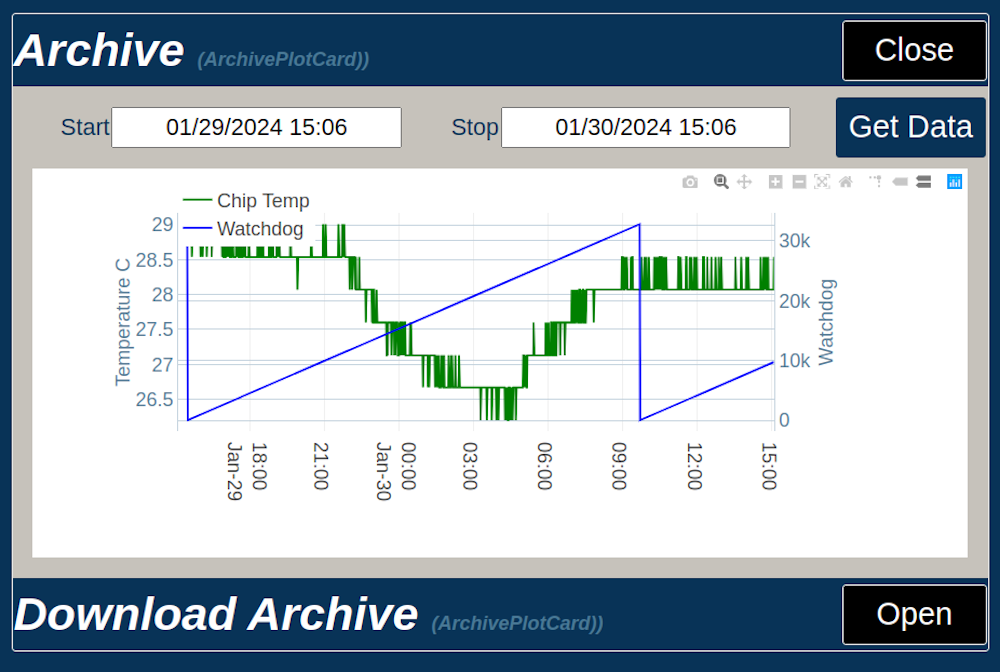

• ArchivePlotCard

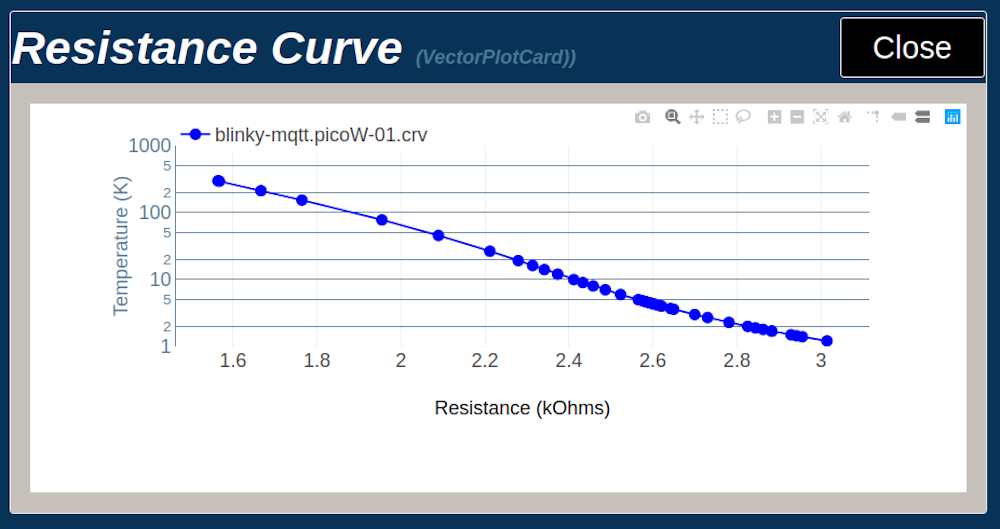

• VectorPlotCard

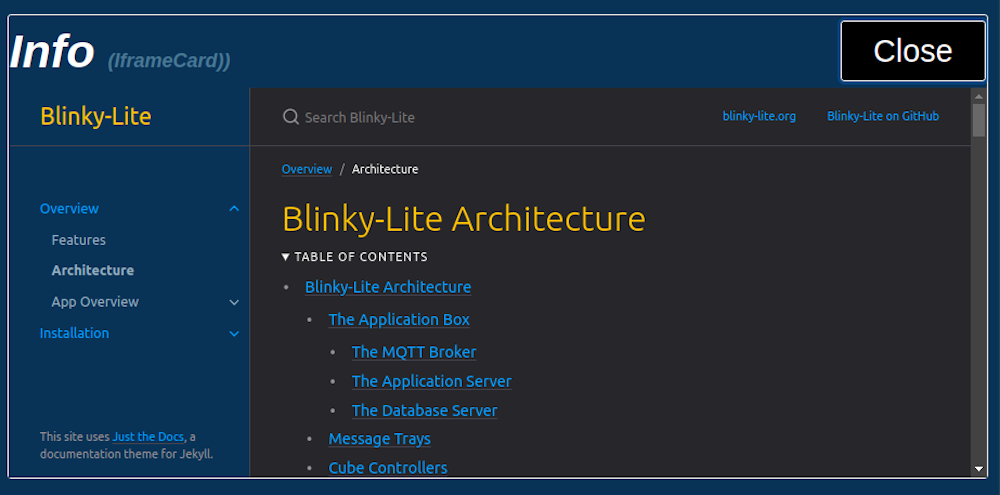

• IframeCard

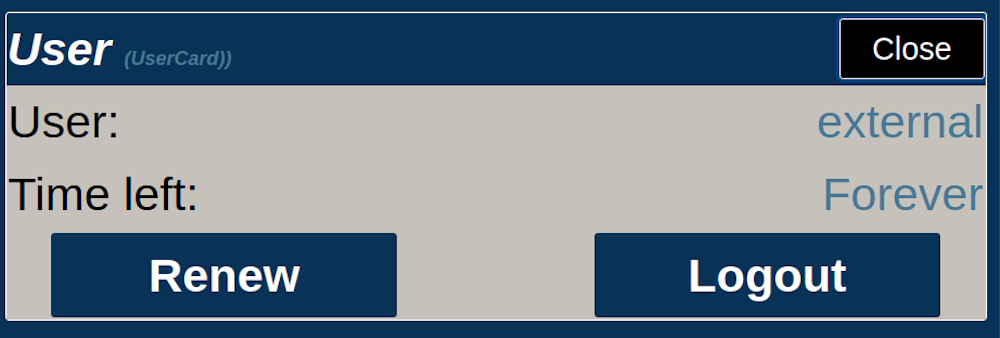

• UserCard

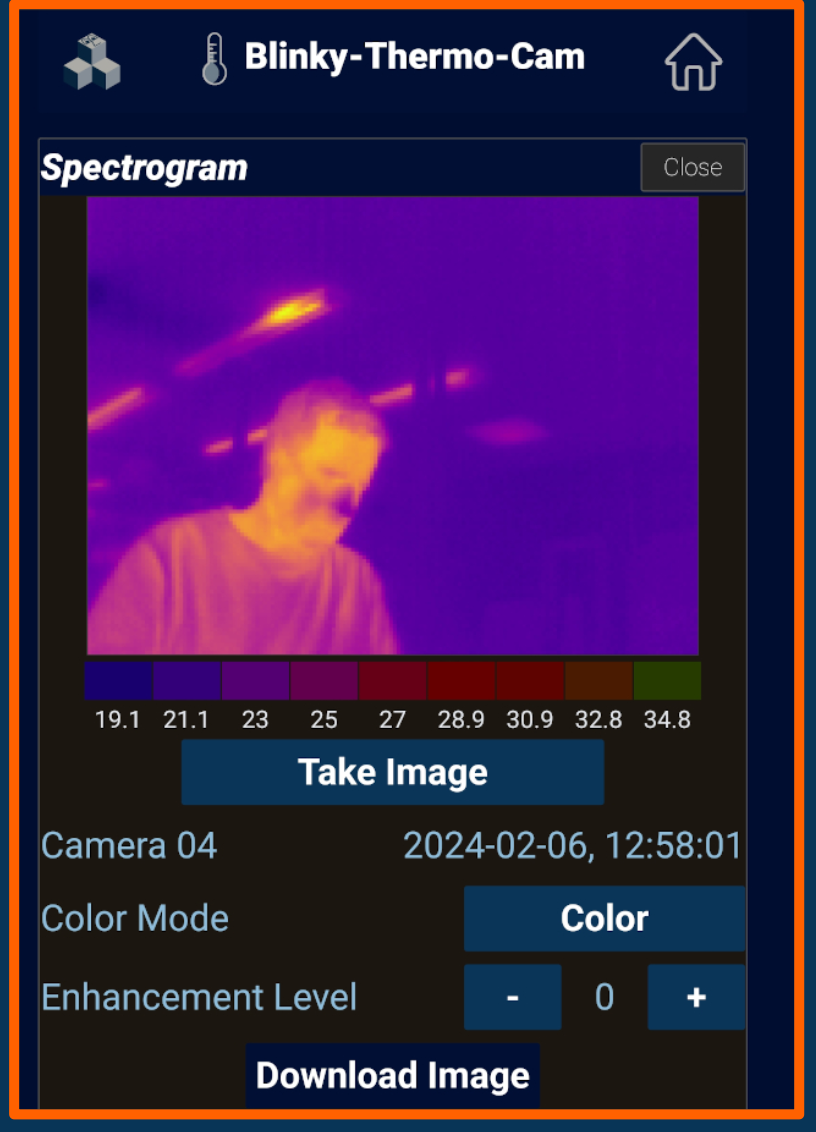

• [CustomCard]

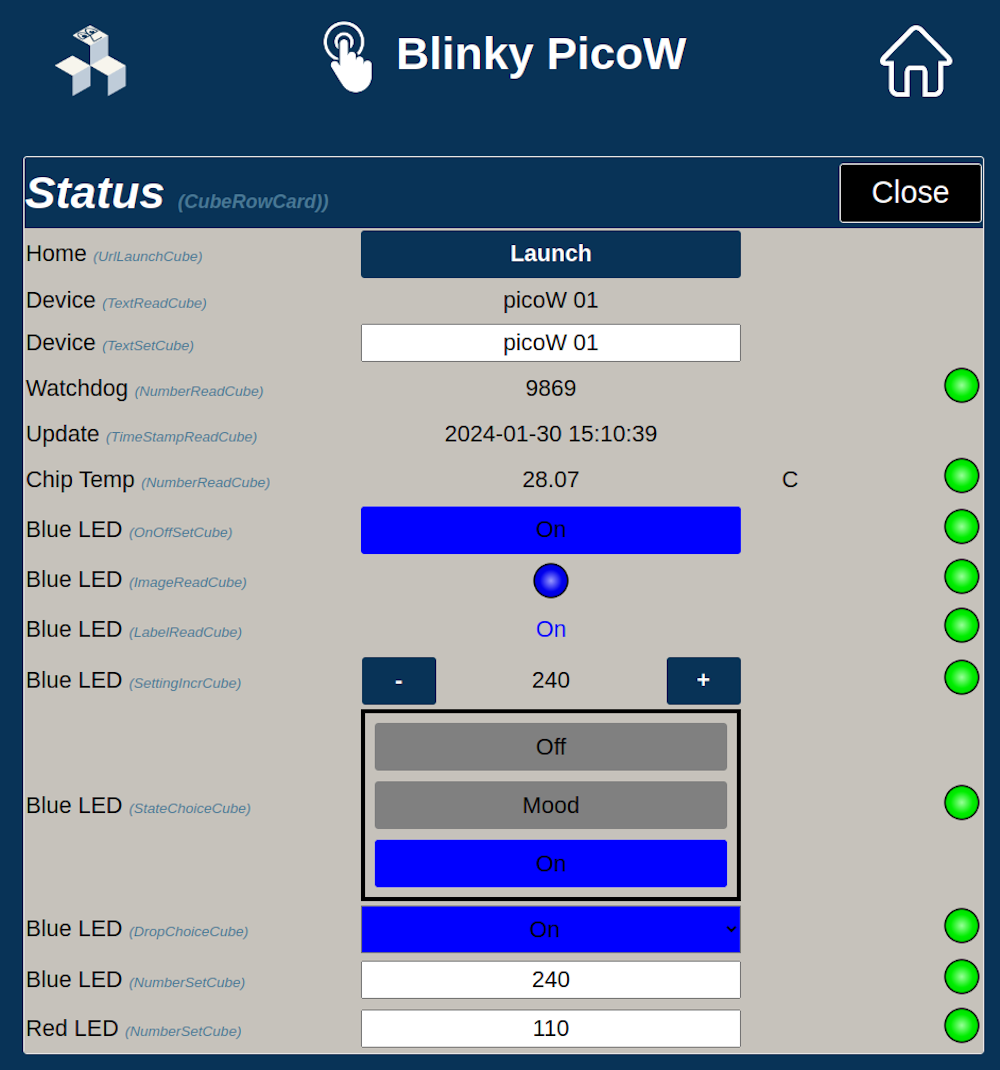

Application Builder CubeRowCard Widgets

For the CubeRowCard there are 13 widgets defined.

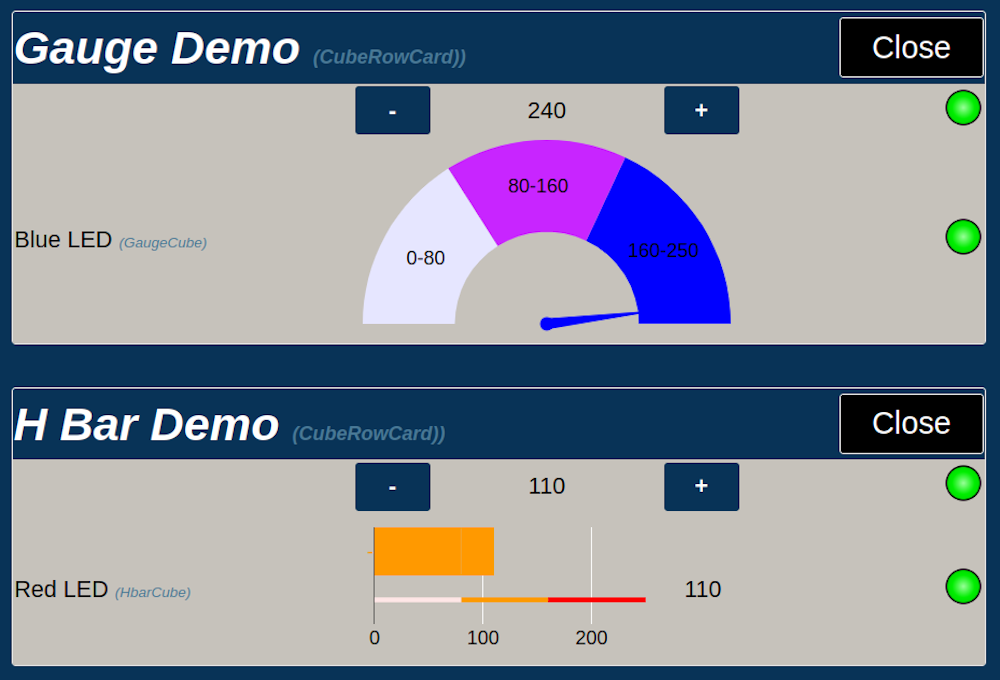

• GaugeCube
• HbarCube
• UrlLaunchCube
• TextReadCube
• TextSetCube
• NumberReadCube
• TimeStampReadCube
• OnOffSetCube
• ImageReadCube
• LabelReadCube
• SettingIncrCube
• StateChoiceCube
• DropChoiceCube
